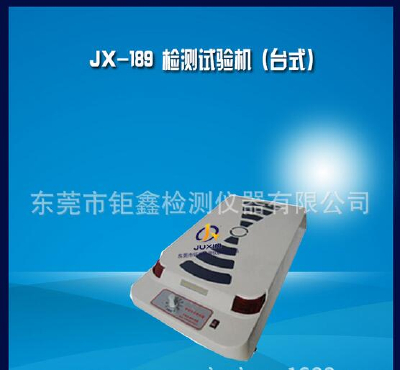

JX-189B desktop needle machine [no conveyor] portable needle machine to detect the broken needle of a brand expert

First, the introduction of equipment:

Platform type needle detector, also known as desktop needle machine, desktop needle detector, flat needle detector. The use of aluminum alloy to make the box, making the product more durable, and greatly improve the mechanical performance and sensitivity to interference.

Two, the scope of application:

Platform type needle detector is suitable for small and thin pieces of clothing, plush, leather shoes, ties, and other items of the broken needle, blade, metal pieces, ferromagnetic metal impurity detection.

Functional characteristics:

1 Japanese technology MCU control IC, aluminum alloy box better stability.

2 when the broken needle, iron magnetic metal impurities, the sound and light two kinds of alarm at the same time.

3 sensitivity of 10 adjustable, can be adjusted according to the size of the sensitivity.

4 the needle detector with high sensitivity and anti-interference ability, can adapt to long time use.

Related parameters:

1 power: 50Hz AC220V

2 power consumption: 30W

3 detection area: 12*500mm

5 sensitivity: = Phi ball 1.0-3.0mm

6 weight: 16KG

7 volume: (L * w * h) 760mm * 450mm * 100mm
